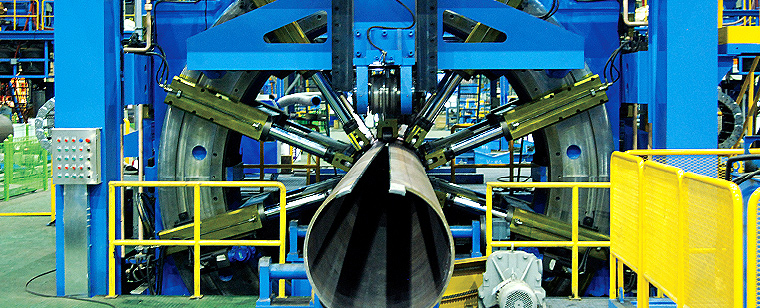

Tack Welding Machine

It is the equipment for continuous tack welding. It puts together the edges of the opening area of the pipes formed in the forming press or GAP forming press. E-Catalogue

Detail View

Machining Movie

General
Specification

We can cope with customer
requirements.

Technical specifications
Equipment Description Standard Specification
Tack Welding Machine External Pipe Dia ∅406 ~ 1,626mm(16″~ 64″)
Material API 5L GR B ~ X100
Plate Length 6,000 ~ 12,800mm/18,300mm
Wall Thickness 8 ~ 70mm
Plate Weight Max. 30ton
Welding Speed 1 ~ 5M/min
Welding Capacity 1,200A
Production Rate 8 ~ 10 pcs/hr
30″ x 25.4t x 12,800mm / 18,300mm
