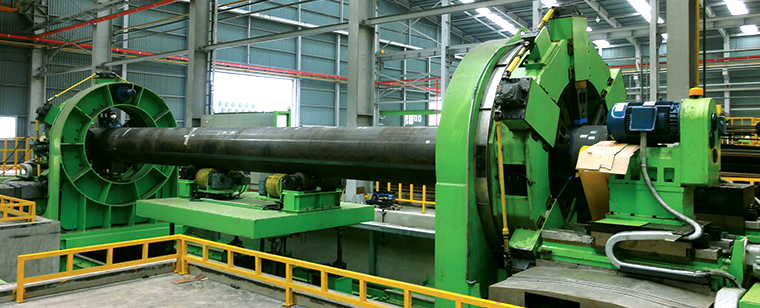

End Facing Machine

It is the equipment for processing the sections of the both ends of the bent, formed and welded pipe .

Detail View

Machining Movie

General
Specification

We can cope with customer
requirements.

Technical specifications
Equipment Description Standard Specification
END FACER External Pipe Dia Dia ∅408 ~ ∅1,676mm(16″~ 66″)
Material API 5L GRB ~ X100
Plate Length 6,000 ~ 12,800mm/18,300mm
Wall Thickness 8 ~ 70mm
Plate Weight Max. 25ton
Pipe Clamp Type JAW Assembling Type
Cutting Tool Copy roll type
Production Rate 8 ~ 10 pcs/hr
∅30″ x 25.4t x 12,800mm / 18,300mm
