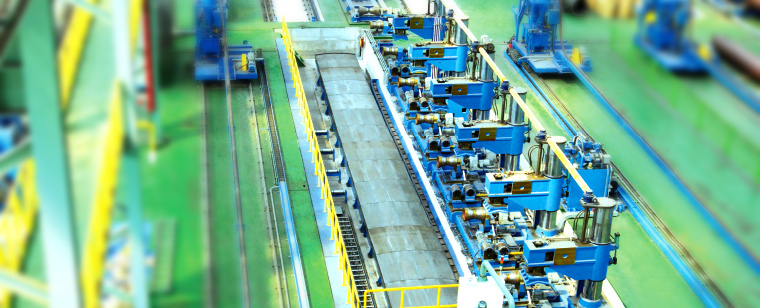

Long Seam Milling Machine
It is the equipment for processing the tack-welded part outside the pipe using the cutter.
Detail View
Machining Movie
General
Specification
We can cope with customer
requirements.
| Equipment | Description | Standard Specification |
|---|---|---|
| Long Seam Milling Machine | External Pipe Dia | ∅406 ~ 1,626mm(16″~ 64″) |
| Material | API 5L GR B ~ X100 | |
| Plate Length | 6,000 ~ 12,800mm/18,300mm | |
| Wall Thickness | 8 ~ 70mm | |
| Plate Weight | Max. 30ton | |
| Cutting Type | Horizontal moving type | |
| Cutting Speed | 1 ~ 5m/min | |
| Cutting Dia | ∅700mm | |
| Clamp Type | Bottom - Roller moving control type | |
| Top - Clamp up-down type | ||
| Production Rate | 8 ~ 10 pcs/hr | |
| 30″ x 25.4t x 12,800mm / 18,300mm |
