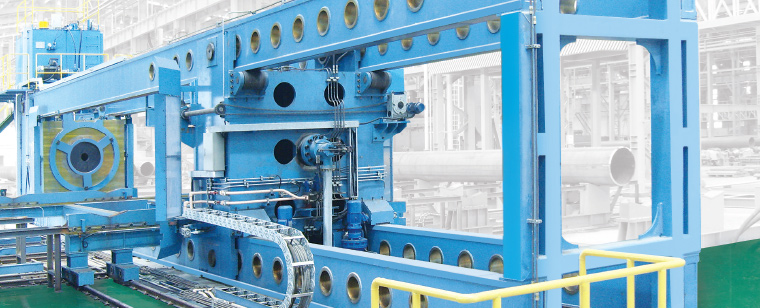

Hydrostatic Test Machine

It is the equipment for hydrostatic testing. It fills the bent and welded pipe with water and consistently adds pressure into the pipe to test the pipe. E-Catalogue

Detail View

Machining Movie

General
Specification

We can cope with customer
requirements.

Technical specifications
Equipment Description Standard Specification
Hydrostatic
Test Machine		 External Pipe Dia ∅406 ~ 1,626mm(16″~ 64″)
Material API 5L GR B ~ X100
Plate Length 6,000 ~ 12,800mm/18,300mm
Wall Thickness 8 ~ 70mm
Plate Weight Max. 30ton
Sealing Type Plate surface + Packing plate
Sealing program Sealing sheet auto, moving type
Synchronizing system
Production Rate 8 ~ 10 pcs/hr
∅30″ x 25.4t x 12,800mm / 18,300mm
Products

The only korean turn-key maker of JCO LSAW pipe manufacturing facilities, Individual machineries
