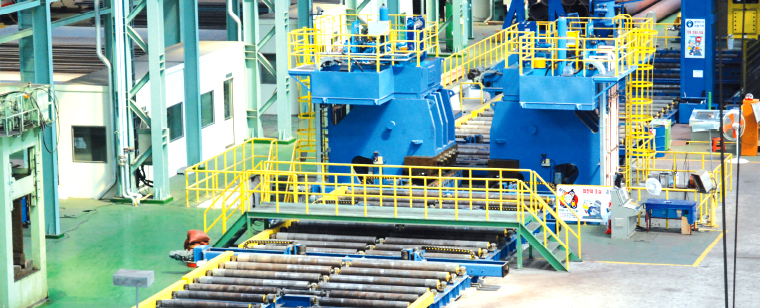

Pre Bending Machine
It is the equipment for bending the edges by aligning and feeding regular distance the material afterbeveling the edges. It is capable of adjusting the pitch.
Detail View
Machining Movie
General
Specification
We can cope with customer
requirements.
| Equipment | Description | Standard Specification | |
|---|---|---|---|
| Pre Bending Machine | External Pipe Dia | ∅406 ~ 1,626mm(16″~ 64″) | |
| Material | API 5L GR B ~ X100 | ||
| Plate Width | 1,100 ~ 5,100mm | ||
| Plate Length | 6,000 ~ 12,800mm/18,300mm | ||
| Wall Thickness | 8 ~ 70mm | ||
| Plate Weight | Max. 30ton | ||
| Bending Pitch | Max. 1,500mm | ||
| Tool | upper | 5set | |
| lower | 2set | ||
| Production Rate | 8 ~ 10 pcs/hr | ||
| 30″ x 25.4t x 12,800mm / 18,300mm | |||
