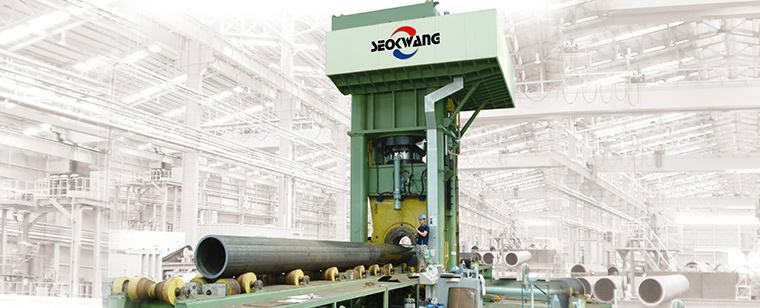

Calibration Press

It is the equipment for correcting the roundness and straightness of the pipe by continuously feeding the bent and formed pipes after welding inside and outside.
E-Catalogue

Detail View

Machining Movie

General
Specification

We can cope with customer
requirements.

Technical specifications
Equipment Description Standard Specification
Calibration
Press		 External Pipe Dia ∅406 ~ 1,626mm(16″~ 64″)
Material API 5L GR B ~ X100
Plate Length 6,000 ~ 12,800mm/18,300mm
Wall Thickness 8 ~ 70mm
Plate Weight Max. 30ton
Straighting Unit Hydraulic. system
Forming Pitch 500mm
Production Rate 8 ~ 10 pcs/hr
30″ x 25.4t x 12,800mm / 18,300mm
