JCO LSAW Pipe Manufacturing FacilitiesBusiness Scope

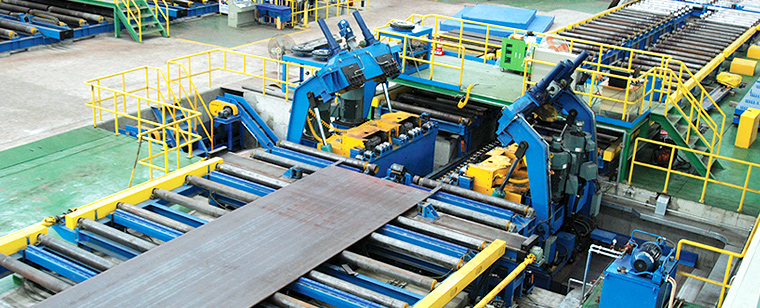

Edge Milling Machine
It is the equipment for processing the bevel angle on the edges of the material (steel plate)by aligning and feeding the material
Detail View
Machining Movie
General
Specification
We can cope with customer
requirements.
| Equipment | Description | Standard Specification | |
|---|---|---|---|
| JCO Forming Press | External Pipe Dia | ∅406 ~ 1,626mm(16″~ 64″) | |
| Material | API 5L GR B ~ X100 | ||
| Plate Width | 1,100 ~ 5,100mm | ||
| Plate Length | 6,000 ~ 12,800mm/18,300mm | ||
| Wall Thickness | 8 ~ 70mm | ||
| Plate Weight | Max. 30ton | ||
| Bending Pitch | Max. 1,500mm | ||
| Tool | upper | 5set | |
| lower | 2set | ||
| Production Rate | 8 ~ 10 pcs/hr | ||
| 30″ x 25.4t x 12,800mm / 18,300mm | |||
