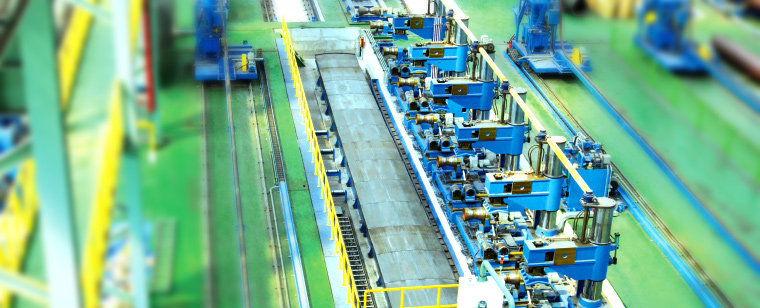

Long Seam Milling Machine

Pipe 외면부 Tack Welding된 용접부를 Cutter를 이용하여 가공하는 장비 E-Catalogue

Detail View

Machining Movie

General
Specification

고객 요구사항에 대응 할 수 있습니다.

Technical specifications
Equipment Description Standard Specification
Long Seam Milling Machine External Pipe Dia ∅406 ~ 1,626mm(16″~ 64″)
Material API 5L GR B ~ X100
Plate Length 6,000 ~ 12,800mm/18,300mm
Wall Thickness 8 ~ 70mm
Plate Weight Max. 30ton
Cutting Type Horizontal moving type
Cutting Speed 1 ~ 5m/min
Cutting Dia ∅700mm
Clamp Type Bottom - Roller moving control type
Top - Clamp up-down type
Production Rate 8 ~ 10 pcs/hr
30″ x 25.4t x 12,800mm / 18,300mm
