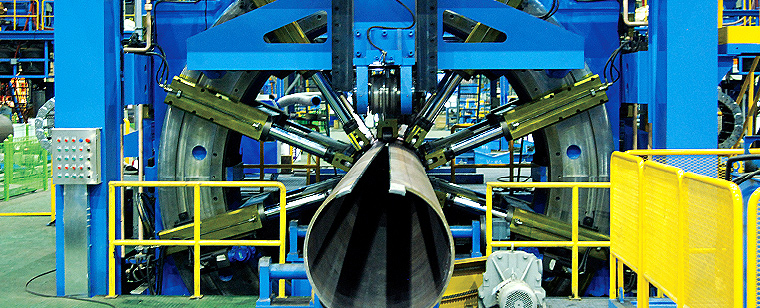

Tack Welding Machine

Forming Press or GAP Forming Press에서 성형한 Pipe Open부를 Edge Meeting
시켜 연속 Tack 용접을 하기 위한 장비 E-Catalogue

Detail View

Machining Movie

General
Specification

고객 요구사항에 대응 할 수 있습니다.

Technical specifications
Equipment Description Standard Specification
Tack Welding Machine External Pipe Dia ∅406 ~ 1,626mm(16″~ 64″)
Material API 5L GR B ~ X100
Plate Length 6,000 ~ 12,800mm/18,300mm
Wall Thickness 8 ~ 70mm
Plate Weight Max. 30ton
Welding Speed 1 ~ 5M/min
Welding Capacity 1,200A
Production Rate 8 ~ 10 pcs/hr
30″ x 25.4t x 12,800mm / 18,300mm
