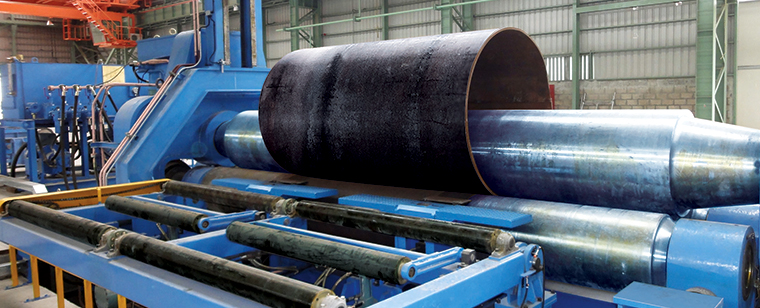

Roll Bending Machine
Plate를 Bending 성형해서 원통형으로 만들기 위한 장비
Detail View
Machining Movie
General
Specification
고객 요구사항에 대응 할 수 있습니다.
| Equipment | Standard Specification | ||
|---|---|---|---|
| Roll Bending Machine |
Description | ROLL BENDER(6M) | ROLL BENDER(4M) |
| External Pipe Dia | ∅1,500 ~ ∅6,000 | ∅1,300 ~ ∅6,000 | |
| Material | API 5L GR B ~ X100 | API 5L GR B ~ X100 | |
| Plate Width | 0 ~ 6,000mm | 0 ~ 4,000mm | |
| No of Roll | 3 Roll / 4 Roll | 3 Roll / 4 Roll | |
| Wall Thickness | Max. 120mm | Max. 120mm | |
| Roll Driving | Bottom roller driving system | ||
| Planetary speed reducer | |||
| 3 Hydro - motor | |||
| Operating Speed | 1 ~ 9m/min | 1 ~ 9m/min | |
