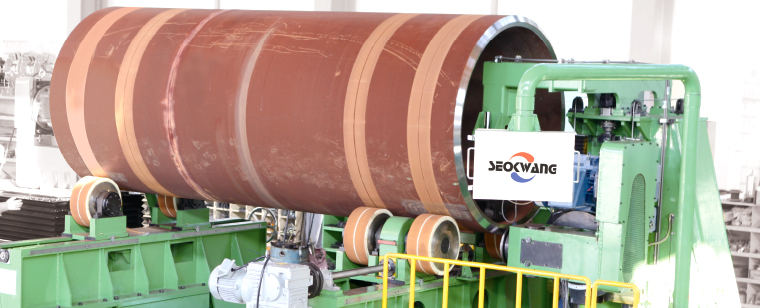

End Beveling Machine
It is the equipment for improving and processing the both ends of the formed and bent pipe,
appropriate for connecting large dia pipe.
Detail View
Machining Movie
General
Specification
We can cope with customer
requirements.
| Equipment | Description | Standard Specification |
|---|---|---|
| End Bevelling Machine |
External Pipe Dia | ∅1,500 ~ ∅6,000mm(59˝~236˝) |
| Material | API 5L GR B ~ X100 | |
| Pipe Length | 3,000 ~ 6,000mm | |
| Wall Thickness | 25 ~ 150mm | |
| Pipe Weight | Max. 100ton | |
| Cutting Type | Spindle + Cutter | |
| Cutting Speed | 0.3 ~ 1 m/min | |
| Turning Roll | 1 Drive + 1 Idle type | |
| Production Rate | 3 pcs/hr | |
| ∅3,000 x 4,000L |
